Run BRIE

Detect differential alternative polyadenylation site signal

In order to identify differential APA signal, we directly exploit BRIE2 which is based on a Bayesian hierarchical model. If you want to run BRIE2, two files should prepare: one h5ad file including PAS signal count and one tsv file including design matrix information.

Prepare h5ad file

[1]:

import pandas as pd
import scanpy as sc
import numpy as np

You can find human_intestal_allPAS.h5ad and human_intestinal_gene_exp_scale.h5ad in the figshare (https://doi.org/10.6084/m9.figshare.25902508.v2)

[2]:

adata=sc.read('/mnt/ruiyanhou/nfs_share2/three_primer/human_intestinal/human_intestal_allPAS.h5ad')
adata

[2]:

AnnData object with n_obs × n_vars = 14537 × 14025
    obs: 'celltype', 'sample_id', 'organ'
    var: 'cluster_start', 'cluster_end', 'cluster_score', 'cluster_strand', 'gene_start', 'gene_end', 'gene_score', 'gene_strand', 'original_cluster_id', 'cluster_chr', 'gene_chr', 'gene_id', 'gene_name'
    obsm: 'X_tsne'

[3]:

expadata=sc.read('/mnt/ruiyanhou/nfs_share2/three_primer/human_intestinal/human_intestinal_gene_exp_scale.h5ad')
expadata

[3]:

AnnData object with n_obs × n_vars = 14537 × 62700
    obs: 'celltype', 'sample_id', 'organ'
    var: 'gene_ids', 'feature_types'
    uns: 'celltype_colors', 'log1p', 'raw_count'
    obsm: 'X_tsne'

Because BRIE requires to input raw count matrix, you should keep the raw count before you do normalization. Here you can transfer the raw count to X conveniently.

[4]:

expadata.X=expadata.uns['raw_count']
expadata.X

[4]:

<14537x62700 sparse matrix of type '<class 'numpy.float32'>'
        with 41145153 stored elements in Compressed Sparse Row format>

[5]:

expadata.X.toarray()

[5]:

array([[  0.,   0.,   0., ...,  47.,   0.,   0.],
       [  0.,   0.,   0., ..., 100.,   0.,   1.],
       [  0.,   0.,   0., ...,  64.,   0.,   0.],
       ...,
       [  0.,   0.,   0., ..., 103.,   0.,   0.],
       [  0.,   0.,   0., ..., 117.,   0.,   0.],
       [  0.,   0.,   0., ...,  70.,   0.,   0.]], dtype=float32)

[6]:

expadata.var.index

[6]:

Index(['DDX11L2', 'DDX11L1', 'WASH7P', 'MIR6859-1', 'MIR1302-2HG', 'MIR1302-2',
       'FAM138A', 'OR4G4P', 'ENSG00000290826', 'OR4G11P',
       ...
       'MT-ND4', 'MT-TH', 'MT-TS2', 'MT-TL2', 'MT-ND5', 'MT-ND6', 'MT-TE',
       'MT-CYB', 'MT-TT', 'MT-TP'],
      dtype='object', length=62700)

Here, we change the index of expadata.

[7]:

expadata.var['gene_name']=expadata.var.index

[8]:

expadata.var.index=expadata.var['gene_ids']

[9]:

expadata.var.index

[9]:

Index(['ENSG00000290825.1', 'ENSG00000223972.6', 'ENSG00000227232.5',
       'ENSG00000278267.1', 'ENSG00000243485.5', 'ENSG00000284332.1',
       'ENSG00000237613.2', 'ENSG00000268020.3', 'ENSG00000290826.1',
       'ENSG00000240361.3',
       ...
       'ENSG00000198886.2', 'ENSG00000210176.1', 'ENSG00000210184.1',
       'ENSG00000210191.1', 'ENSG00000198786.2', 'ENSG00000198695.2',
       'ENSG00000210194.1', 'ENSG00000198727.2', 'ENSG00000210195.2',
       'ENSG00000210196.2'],
      dtype='object', name='gene_ids', length=62700)

[10]:

expadata.obs_names_make_unique()

Next, we will select genes with two PASs.

[11]:

genedf=adata.var.copy()
genedf

[11]:
cluster_start cluster_end cluster_score cluster_strand gene_start gene_end gene_score gene_strand original_cluster_id cluster_chr gene_chr gene_id gene_name
chr17_48762233_48762252*ENSG00000170703.16 48762233 48762252 0 - 48762233 48817229 0 - chr17_-_48762233_48762252*ENSG00000170703.16 chr17 chr17 ENSG00000170703.16 TTLL6
chr10_50626557_50626580*ENSG00000226200.7 50626557 50626580 0 + 50623465 50641451 0 + chr10_+_50626557_50626580*ENSG00000226200.7 chr10 chr10 ENSG00000226200.7 SGMS1-AS1
chr6_139372255_139372312*ENSG00000164442.11 139372255 139372312 0 - 139371806 139374648 0 - chr6_-_139372255_139372288,chr6_-_139372255_13... chr6 chr6 ENSG00000164442.11 CITED2
chr6_139372947_139373017*ENSG00000164442.11 139372947 139373017 0 - 139371806 139374648 0 - chr6_-_139372947_139372996,chr6_-_139372949_13... chr6 chr6 ENSG00000164442.11 CITED2
chr8_143723932_143723985*ENSG00000180921.7 143723932 143723985 0 - 143723932 143738234 0 - chr8_-_143723932_143723953,chr8_-_143723932_14... chr8 chr8 ENSG00000180921.7 FAM83H
... ... ... ... ... ... ... ... ... ... ... ... ... ...
chr2_96835175_96835195*ENSG00000168763.16 96835175 96835195 0 + 96816244 96835382 0 + chr2_+_96835175_96835195*ENSG00000168763.16 chr2 chr2 ENSG00000168763.16 CNNM3
chr2_96835357_96835382*ENSG00000168763.16 96835357 96835382 0 + 96816244 96835382 0 + chr2_+_96835357_96835381,chr2_+_96835365_96835... chr2 chr2 ENSG00000168763.16 CNNM3
chr4_151120278_151120332*ENSG00000109686.20 151120278 151120332 0 - 151102750 151325605 0 - chr4_-_151120278_151120316,chr4_-_151120278_15... chr4 chr4 ENSG00000109686.20 SH3D19
chr4_151121365_151121392*ENSG00000109686.20 151121365 151121392 0 - 151102750 151325605 0 - chr4_-_151121365_151121392,chr4_-_151121366_15... chr4 chr4 ENSG00000109686.20 SH3D19
chr17_3714627_3714713*ENSG00000083457.12 3714627 3714713 0 - 3714627 3801188 0 - chr17_-_3714627_3714656,chr17_-_3714627_371465... chr17 chr17 ENSG00000083457.12 ITGAE

14025 rows × 13 columns

[12]:

genedf.reset_index(inplace=True)
genedf

[12]:
index cluster_start cluster_end cluster_score cluster_strand gene_start gene_end gene_score gene_strand original_cluster_id cluster_chr gene_chr gene_id gene_name
0 chr17_48762233_48762252*ENSG00000170703.16 48762233 48762252 0 - 48762233 48817229 0 - chr17_-_48762233_48762252*ENSG00000170703.16 chr17 chr17 ENSG00000170703.16 TTLL6
1 chr10_50626557_50626580*ENSG00000226200.7 50626557 50626580 0 + 50623465 50641451 0 + chr10_+_50626557_50626580*ENSG00000226200.7 chr10 chr10 ENSG00000226200.7 SGMS1-AS1
2 chr6_139372255_139372312*ENSG00000164442.11 139372255 139372312 0 - 139371806 139374648 0 - chr6_-_139372255_139372288,chr6_-_139372255_13... chr6 chr6 ENSG00000164442.11 CITED2
3 chr6_139372947_139373017*ENSG00000164442.11 139372947 139373017 0 - 139371806 139374648 0 - chr6_-_139372947_139372996,chr6_-_139372949_13... chr6 chr6 ENSG00000164442.11 CITED2
4 chr8_143723932_143723985*ENSG00000180921.7 143723932 143723985 0 - 143723932 143738234 0 - chr8_-_143723932_143723953,chr8_-_143723932_14... chr8 chr8 ENSG00000180921.7 FAM83H
... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
14020 chr2_96835175_96835195*ENSG00000168763.16 96835175 96835195 0 + 96816244 96835382 0 + chr2_+_96835175_96835195*ENSG00000168763.16 chr2 chr2 ENSG00000168763.16 CNNM3
14021 chr2_96835357_96835382*ENSG00000168763.16 96835357 96835382 0 + 96816244 96835382 0 + chr2_+_96835357_96835381,chr2_+_96835365_96835... chr2 chr2 ENSG00000168763.16 CNNM3
14022 chr4_151120278_151120332*ENSG00000109686.20 151120278 151120332 0 - 151102750 151325605 0 - chr4_-_151120278_151120316,chr4_-_151120278_15... chr4 chr4 ENSG00000109686.20 SH3D19
14023 chr4_151121365_151121392*ENSG00000109686.20 151121365 151121392 0 - 151102750 151325605 0 - chr4_-_151121365_151121392,chr4_-_151121366_15... chr4 chr4 ENSG00000109686.20 SH3D19
14024 chr17_3714627_3714713*ENSG00000083457.12 3714627 3714713 0 - 3714627 3801188 0 - chr17_-_3714627_3714656,chr17_-_3714627_371465... chr17 chr17 ENSG00000083457.12 ITGAE

14025 rows × 14 columns

[13]:

keepgenedf=genedf[genedf.duplicated('gene_id',keep=False)]
keepgenedf

[13]:
index cluster_start cluster_end cluster_score cluster_strand gene_start gene_end gene_score gene_strand original_cluster_id cluster_chr gene_chr gene_id gene_name
2 chr6_139372255_139372312*ENSG00000164442.11 139372255 139372312 0 - 139371806 139374648 0 - chr6_-_139372255_139372288,chr6_-_139372255_13... chr6 chr6 ENSG00000164442.11 CITED2
3 chr6_139372947_139373017*ENSG00000164442.11 139372947 139373017 0 - 139371806 139374648 0 - chr6_-_139372947_139372996,chr6_-_139372949_13... chr6 chr6 ENSG00000164442.11 CITED2
7 chr4_69721166_69721208*ENSG00000173597.9 69721166 69721208 0 - 69721166 69787961 0 - chr4_-_69721166_69721194,chr4_-_69721166_69721... chr4 chr4 ENSG00000173597.9 SULT1B1
8 chr4_69726841_69726860*ENSG00000173597.9 69726841 69726860 0 - 69721166 69787961 0 - chr4_-_69726841_69726855,chr4_-_69726841_69726... chr4 chr4 ENSG00000173597.9 SULT1B1
9 chr4_69726960_69727014*ENSG00000173597.9 69726960 69727014 0 - 69721166 69787961 0 - chr4_-_69726960_69726999,chr4_-_69726961_69726... chr4 chr4 ENSG00000173597.9 SULT1B1
... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
14019 chr2_96833523_96833579*ENSG00000168763.16 96833523 96833579 0 + 96816244 96835382 0 + chr2_+_96833523_96833577,chr2_+_96833527_96833... chr2 chr2 ENSG00000168763.16 CNNM3
14020 chr2_96835175_96835195*ENSG00000168763.16 96835175 96835195 0 + 96816244 96835382 0 + chr2_+_96835175_96835195*ENSG00000168763.16 chr2 chr2 ENSG00000168763.16 CNNM3
14021 chr2_96835357_96835382*ENSG00000168763.16 96835357 96835382 0 + 96816244 96835382 0 + chr2_+_96835357_96835381,chr2_+_96835365_96835... chr2 chr2 ENSG00000168763.16 CNNM3
14022 chr4_151120278_151120332*ENSG00000109686.20 151120278 151120332 0 - 151102750 151325605 0 - chr4_-_151120278_151120316,chr4_-_151120278_15... chr4 chr4 ENSG00000109686.20 SH3D19
14023 chr4_151121365_151121392*ENSG00000109686.20 151121365 151121392 0 - 151102750 151325605 0 - chr4_-_151121365_151121392,chr4_-_151121366_15... chr4 chr4 ENSG00000109686.20 SH3D19

7402 rows × 14 columns

If the PAS signal located in the positive strand, then we define the cluster_end as the PAS. If the PAS singal located in the negative strand, then we define the cluster_start as the PAS.

[17]:

keepgenedf['PAS']=np.where(keepgenedf['cluster_strand']=='+',keepgenedf['cluster_end'],keepgenedf['cluster_start'])
keepgenedf

/tmp/ipykernel_102890/2080422649.py:1: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame.
Try using .loc[row_indexer,col_indexer] = value instead

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  keepgenedf['PAS']=np.where(keepgenedf['cluster_strand']=='+',keepgenedf['cluster_end'],keepgenedf['cluster_start'])

[17]:
index cluster_start cluster_end cluster_score cluster_strand gene_start gene_end gene_score gene_strand original_cluster_id cluster_chr gene_chr gene_id gene_name PAS
2 chr6_139372255_139372312*ENSG00000164442.11 139372255 139372312 0 - 139371806 139374648 0 - chr6_-_139372255_139372288,chr6_-_139372255_13... chr6 chr6 ENSG00000164442.11 CITED2 139372255
3 chr6_139372947_139373017*ENSG00000164442.11 139372947 139373017 0 - 139371806 139374648 0 - chr6_-_139372947_139372996,chr6_-_139372949_13... chr6 chr6 ENSG00000164442.11 CITED2 139372947
7 chr4_69721166_69721208*ENSG00000173597.9 69721166 69721208 0 - 69721166 69787961 0 - chr4_-_69721166_69721194,chr4_-_69721166_69721... chr4 chr4 ENSG00000173597.9 SULT1B1 69721166
8 chr4_69726841_69726860*ENSG00000173597.9 69726841 69726860 0 - 69721166 69787961 0 - chr4_-_69726841_69726855,chr4_-_69726841_69726... chr4 chr4 ENSG00000173597.9 SULT1B1 69726841
9 chr4_69726960_69727014*ENSG00000173597.9 69726960 69727014 0 - 69721166 69787961 0 - chr4_-_69726960_69726999,chr4_-_69726961_69726... chr4 chr4 ENSG00000173597.9 SULT1B1 69726960
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
14019 chr2_96833523_96833579*ENSG00000168763.16 96833523 96833579 0 + 96816244 96835382 0 + chr2_+_96833523_96833577,chr2_+_96833527_96833... chr2 chr2 ENSG00000168763.16 CNNM3 96833579
14020 chr2_96835175_96835195*ENSG00000168763.16 96835175 96835195 0 + 96816244 96835382 0 + chr2_+_96835175_96835195*ENSG00000168763.16 chr2 chr2 ENSG00000168763.16 CNNM3 96835195
14021 chr2_96835357_96835382*ENSG00000168763.16 96835357 96835382 0 + 96816244 96835382 0 + chr2_+_96835357_96835381,chr2_+_96835365_96835... chr2 chr2 ENSG00000168763.16 CNNM3 96835382
14022 chr4_151120278_151120332*ENSG00000109686.20 151120278 151120332 0 - 151102750 151325605 0 - chr4_-_151120278_151120316,chr4_-_151120278_15... chr4 chr4 ENSG00000109686.20 SH3D19 151120278
14023 chr4_151121365_151121392*ENSG00000109686.20 151121365 151121392 0 - 151102750 151325605 0 - chr4_-_151121365_151121392,chr4_-_151121366_15... chr4 chr4 ENSG00000109686.20 SH3D19 151121365

7402 rows × 15 columns

[18]:

positivedf=keepgenedf[keepgenedf['cluster_strand']=='+']
positivedf

[18]:
index cluster_start cluster_end cluster_score cluster_strand gene_start gene_end gene_score gene_strand original_cluster_id cluster_chr gene_chr gene_id gene_name PAS
16 chr1_224159472_224159560*ENSG00000143756.12 224159472 224159560 0 + 224114110 224162047 0 + chr1_+_224159472_224159560,chr1_+_224159488_22... chr1 chr1 ENSG00000143756.12 FBXO28 224159560
17 chr1_224162032_224162047*ENSG00000143756.12 224162032 224162047 0 + 224114110 224162047 0 + chr1_+_224162032_224162047,chr1_+_224162032_22... chr1 chr1 ENSG00000143756.12 FBXO28 224162047
22 chr9_69248930_69248989*ENSG00000119139.21 69248930 69248989 0 + 69121263 69274615 0 + chr9_+_69248930_69248970,chr9_+_69248933_69248... chr9 chr9 ENSG00000119139.21 TJP2 69248989
23 chr9_69255177_69255205*ENSG00000119139.21 69255177 69255205 0 + 69121263 69274615 0 + chr9_+_69255177_69255203,chr9_+_69255177_69255... chr9 chr9 ENSG00000119139.21 TJP2 69255205
29 chr22_31277340_31277418*ENSG00000182541.18 31277340 31277418 0 + 31212238 31280080 0 + chr22_+_31277340_31277418,chr22_+_31277343_312... chr22 chr22 ENSG00000182541.18 LIMK2 31277418
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
14010 chr4_158906760_158906806*ENSG00000052795.13 158906760 158906806 0 + 158769025 158908050 0 + chr4_+_158906760_158906799,chr4_+_158906763_15... chr4 chr4 ENSG00000052795.13 FNIP2 158906806
14011 chr4_158908008_158908050*ENSG00000052795.13 158908008 158908050 0 + 158769025 158908050 0 + chr4_+_158908008_158908050,chr4_+_158908008_15... chr4 chr4 ENSG00000052795.13 FNIP2 158908050
14019 chr2_96833523_96833579*ENSG00000168763.16 96833523 96833579 0 + 96816244 96835382 0 + chr2_+_96833523_96833577,chr2_+_96833527_96833... chr2 chr2 ENSG00000168763.16 CNNM3 96833579
14020 chr2_96835175_96835195*ENSG00000168763.16 96835175 96835195 0 + 96816244 96835382 0 + chr2_+_96835175_96835195*ENSG00000168763.16 chr2 chr2 ENSG00000168763.16 CNNM3 96835195
14021 chr2_96835357_96835382*ENSG00000168763.16 96835357 96835382 0 + 96816244 96835382 0 + chr2_+_96835357_96835381,chr2_+_96835365_96835... chr2 chr2 ENSG00000168763.16 CNNM3 96835382

3879 rows × 15 columns

[19]:

positivedf.sort_values(['gene_id','PAS'],inplace=True)
positivedf

/tmp/ipykernel_102890/899284162.py:1: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  positivedf.sort_values(['gene_id','PAS'],inplace=True)

[19]:
index cluster_start cluster_end cluster_score cluster_strand gene_start gene_end gene_score gene_strand original_cluster_id cluster_chr gene_chr gene_id gene_name PAS
9107 chr7_117627883_117627910*ENSG00000001626.18 117627883 117627910 0 + 117287119 117715971 0 + chr7_+_117627883_117627910*ENSG00000001626.18 chr7 chr7 ENSG00000001626.18 CFTR 117627910
9108 chr7_117668613_117668665*ENSG00000001626.18 117668613 117668665 0 + 117287119 117715971 0 + chr7_+_117668613_117668665,chr7_+_117668616_11... chr7 chr7 ENSG00000001626.18 CFTR 117668665
11674 chr7_92399310_92399333*ENSG00000001629.10 92399310 92399333 0 + 92245973 92401383 0 + chr7_+_92399310_92399333*ENSG00000001629.10 chr7 chr7 ENSG00000001629.10 ANKIB1 92399333
11675 chr7_92401340_92401383*ENSG00000001629.10 92401340 92401383 0 + 92245973 92401383 0 + chr7_+_92401340_92401383,chr7_+_92401346_92401... chr7 chr7 ENSG00000001629.10 ANKIB1 92401383
4404 chr2_201141559_201141602*ENSG00000003402.21 201141559 201141602 0 + 201116153 201176687 0 + chr2_+_201141559_201141602,chr2_+_201141561_20... chr2 chr2 ENSG00000003402.21 CFLAR 201141602
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
11980 chr11_119939953_119939998*ENSG00000288047.3 119939953 119939998 0 + 119892699 119939998 0 + chr11_+_119939953_119939998,chr11_+_119939957_... chr11 chr11 ENSG00000288047.3 ENSG00000288047 119939998
8405 chr9_131498122_131498231*ENSG00000288701.1 131498122 131498231 0 + 131373635 131500197 0 + chr9_+_131498122_131498160,chr9_+_131498123_13... chr9 chr9 ENSG00000288701.1 PRRC2B 131498231
8406 chr9_131500136_131500197*ENSG00000288701.1 131500136 131500197 0 + 131373635 131500197 0 + chr9_+_131500136_131500197,chr9_+_131500139_13... chr9 chr9 ENSG00000288701.1 PRRC2B 131500197
11622 chr1_149844768_149844805*ENSG00000290791.1 149844768 149844805 0 + 149842874 149846486 0 + chr1_+_149844768_149844805,chr1_+_149844785_14... chr1 chr1 ENSG00000290791.1 ENSG00000290791 149844805
11623 chr1_149846464_149846485*ENSG00000290791.1 149846464 149846485 0 + 149842874 149846486 0 + chr1_+_149846464_149846485*ENSG00000290791.1 chr1 chr1 ENSG00000290791.1 ENSG00000290791 149846485

3879 rows × 15 columns

We defined the furthest upstream PAS as the proximal PAS and furthest downstream PAS as the distal PAS.

[21]:

positive_proxmaldf=positivedf.groupby(['gene_id']).head(n=1)
positive_proxmaldf

[21]:
index cluster_start cluster_end cluster_score cluster_strand gene_start gene_end gene_score gene_strand original_cluster_id cluster_chr gene_chr gene_id gene_name PAS
9107 chr7_117627883_117627910*ENSG00000001626.18 117627883 117627910 0 + 117287119 117715971 0 + chr7_+_117627883_117627910*ENSG00000001626.18 chr7 chr7 ENSG00000001626.18 CFTR 117627910
11674 chr7_92399310_92399333*ENSG00000001629.10 92399310 92399333 0 + 92245973 92401383 0 + chr7_+_92399310_92399333*ENSG00000001629.10 chr7 chr7 ENSG00000001629.10 ANKIB1 92399333
4404 chr2_201141559_201141602*ENSG00000003402.21 201141559 201141602 0 + 201116153 201176687 0 + chr2_+_201141559_201141602,chr2_+_201141561_20... chr2 chr2 ENSG00000003402.21 CFLAR 201141602
277 chr12_2803327_2803374*ENSG00000004478.8 2803327 2803374 0 + 2794969 2805423 0 + chr12_+_2803327_2803369,chr12_+_2803328_280337... chr12 chr12 ENSG00000004478.8 FKBP4 2803374
6618 chrX_11121812_11121889*ENSG00000004961.15 11121812 11121889 0 + 11111300 11123086 0 + chrX_+_11121812_11121887,chrX_+_11121815_11121... chrX chrX ENSG00000004961.15 HCCS 11121889
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
1039 chr9_37087786_37087847*ENSG00000281649.3 37087786 37087847 0 + 37079644 37090928 0 + chr9_+_37087786_37087836,chr9_+_37087786_37087... chr9 chr9 ENSG00000281649.3 EBLN3P 37087847
13822 chr7_150410917_150410984*ENSG00000284691.1 150410917 150410984 0 + 150400701 150412470 0 + chr7_+_150410917_150410983,chr7_+_150410918_15... chr7 chr7 ENSG00000284691.1 ENSG00000284691 150410984
11979 chr11_119919964_119920003*ENSG00000288047.3 119919964 119920003 0 + 119892699 119939998 0 + chr11_+_119919964_119920003,chr11_+_119919975_... chr11 chr11 ENSG00000288047.3 ENSG00000288047 119920003
8405 chr9_131498122_131498231*ENSG00000288701.1 131498122 131498231 0 + 131373635 131500197 0 + chr9_+_131498122_131498160,chr9_+_131498123_13... chr9 chr9 ENSG00000288701.1 PRRC2B 131498231
11622 chr1_149844768_149844805*ENSG00000290791.1 149844768 149844805 0 + 149842874 149846486 0 + chr1_+_149844768_149844805,chr1_+_149844785_14... chr1 chr1 ENSG00000290791.1 ENSG00000290791 149844805

1541 rows × 15 columns

[22]:

positive_distaldf=positivedf.groupby(['gene_id']).tail(n=1)
positive_distaldf

[22]:
index cluster_start cluster_end cluster_score cluster_strand gene_start gene_end gene_score gene_strand original_cluster_id cluster_chr gene_chr gene_id gene_name PAS
9108 chr7_117668613_117668665*ENSG00000001626.18 117668613 117668665 0 + 117287119 117715971 0 + chr7_+_117668613_117668665,chr7_+_117668616_11... chr7 chr7 ENSG00000001626.18 CFTR 117668665
11675 chr7_92401340_92401383*ENSG00000001629.10 92401340 92401383 0 + 92245973 92401383 0 + chr7_+_92401340_92401383,chr7_+_92401346_92401... chr7 chr7 ENSG00000001629.10 ANKIB1 92401383
4407 chr2_201171638_201171754*ENSG00000003402.21 201171638 201171754 0 + 201116153 201176687 0 + chr2_+_201171638_201171736,chr2_+_201171647_20... chr2 chr2 ENSG00000003402.21 CFLAR 201171754
278 chr12_2803890_2803966*ENSG00000004478.8 2803890 2803966 0 + 2794969 2805423 0 + chr12_+_2803890_2803959,chr12_+_2803893_280396... chr12 chr12 ENSG00000004478.8 FKBP4 2803966
6619 chrX_11123040_11123086*ENSG00000004961.15 11123040 11123086 0 + 11111300 11123086 0 + chrX_+_11123040_11123082,chrX_+_11123043_11123... chrX chrX ENSG00000004961.15 HCCS 11123086
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
1040 chr9_37090352_37090406*ENSG00000281649.3 37090352 37090406 0 + 37079644 37090928 0 + chr9_+_37090352_37090396,chr9_+_37090353_37090... chr9 chr9 ENSG00000281649.3 EBLN3P 37090406
13823 chr7_150412434_150412470*ENSG00000284691.1 150412434 150412470 0 + 150400701 150412470 0 + chr7_+_150412434_150412470*ENSG00000284691.1 chr7 chr7 ENSG00000284691.1 ENSG00000284691 150412470
11980 chr11_119939953_119939998*ENSG00000288047.3 119939953 119939998 0 + 119892699 119939998 0 + chr11_+_119939953_119939998,chr11_+_119939957_... chr11 chr11 ENSG00000288047.3 ENSG00000288047 119939998
8406 chr9_131500136_131500197*ENSG00000288701.1 131500136 131500197 0 + 131373635 131500197 0 + chr9_+_131500136_131500197,chr9_+_131500139_13... chr9 chr9 ENSG00000288701.1 PRRC2B 131500197
11623 chr1_149846464_149846485*ENSG00000290791.1 149846464 149846485 0 + 149842874 149846486 0 + chr1_+_149846464_149846485*ENSG00000290791.1 chr1 chr1 ENSG00000290791.1 ENSG00000290791 149846485

1541 rows × 15 columns

[26]:

negativedf=keepgenedf[keepgenedf['cluster_strand']=='-']
negativedf

negativedf.sort_values(['gene_id','PAS'],inplace=True)
negativedf

negative_promdf=negativedf.groupby(['gene_id']).tail(n=1)
negative_promdf

negative_distaldf=negativedf.groupby(['gene_id']).head(n=1)
negative_distaldf

/tmp/ipykernel_102890/1163048929.py:4: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  negativedf.sort_values(['gene_id','PAS'],inplace=True)

[26]:
index cluster_start cluster_end cluster_score cluster_strand gene_start gene_end gene_score gene_strand original_cluster_id cluster_chr gene_chr gene_id gene_name PAS
957 chrX_100628705_100628755*ENSG00000000003.16 100628705 100628755 0 - 100627107 100639991 0 - chrX_-_100628705_100628753,chrX_-_100628714_10... chrX chrX ENSG00000000003.16 TSPAN6 100628705
2950 chr1_169851007_169851106*ENSG00000000457.14 169851007 169851106 0 - 169849630 169894267 0 - chr1_-_169851007_169851103,chr1_-_169851011_16... chr1 chr1 ENSG00000000457.14 SCYL3 169851007
2330 chr17_28347176_28347224*ENSG00000004142.12 28347176 28347224 0 - 28346632 28357527 0 - chr17_-_28347176_28347201,chr17_-_28347176_283... chr17 chr17 ENSG00000004142.12 POLDIP2 28347176
5297 chr1_33008874_33008931*ENSG00000004455.18 33008874 33008931 0 - 33007985 33080996 0 - chr1_-_33008874_33008918,chr1_-_33008877_33008... chr1 chr1 ENSG00000004455.18 AK2 33008874
3911 chr7_95583498_95583548*ENSG00000004799.8 95583498 95583548 0 - 95583498 95596516 0 - chr7_-_95583498_95583517,chr7_-_95583498_95583... chr7 chr7 ENSG00000004799.8 PDK4 95583498
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
8272 chr16_75501692_75501767*ENSG00000291051.1 75501692 75501767 0 - 75501692 75517335 0 - chr16_-_75501692_75501714,chr16_-_75501692_755... chr16 chr16 ENSG00000291051.1 ENSG00000291051 75501692
6825 chr5_1628513_1628550*ENSG00000291079.1 1628513 1628550 0 - 1598919 1634014 0 - chr5_-_1628513_1628532,chr5_-_1628515_1628550,... chr5 chr5 ENSG00000291079.1 ENSG00000291079 1628513
4747 chr7_66553532_66553614*ENSG00000291136.1 66553532 66553614 0 - 66526087 66592397 0 - chr7_-_66553532_66553614,chr7_-_66553564_66553... chr7 chr7 ENSG00000291136.1 ENSG00000291136 66553532
9864 chr7_100320908_100320958*ENSG00000291178.1 100320908 100320958 0 - 100300019 100336307 0 - chr7_-_100320908_100320939,chr7_-_100320911_10... chr7 chr7 ENSG00000291178.1 ENSG00000291178 100320908
10558 chr6_159679058_159679163*ENSG00000291237.1 159679058 159679163 0 - 159669068 159762529 0 - chr6_-_159679058_159679149,chr6_-_159679058_15... chr6 chr6 ENSG00000291237.1 SOD2 159679058

1412 rows × 15 columns

[27]:

promialdf=pd.concat([positive_proxmaldf,negative_promdf],axis=0)
promialdf

[27]:
index cluster_start cluster_end cluster_score cluster_strand gene_start gene_end gene_score gene_strand original_cluster_id cluster_chr gene_chr gene_id gene_name PAS
9107 chr7_117627883_117627910*ENSG00000001626.18 117627883 117627910 0 + 117287119 117715971 0 + chr7_+_117627883_117627910*ENSG00000001626.18 chr7 chr7 ENSG00000001626.18 CFTR 117627910
11674 chr7_92399310_92399333*ENSG00000001629.10 92399310 92399333 0 + 92245973 92401383 0 + chr7_+_92399310_92399333*ENSG00000001629.10 chr7 chr7 ENSG00000001629.10 ANKIB1 92399333
4404 chr2_201141559_201141602*ENSG00000003402.21 201141559 201141602 0 + 201116153 201176687 0 + chr2_+_201141559_201141602,chr2_+_201141561_20... chr2 chr2 ENSG00000003402.21 CFLAR 201141602
277 chr12_2803327_2803374*ENSG00000004478.8 2803327 2803374 0 + 2794969 2805423 0 + chr12_+_2803327_2803369,chr12_+_2803328_280337... chr12 chr12 ENSG00000004478.8 FKBP4 2803374
6618 chrX_11121812_11121889*ENSG00000004961.15 11121812 11121889 0 + 11111300 11123086 0 + chrX_+_11121812_11121887,chrX_+_11121815_11121... chrX chrX ENSG00000004961.15 HCCS 11121889
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
8273 chr16_75504657_75504679*ENSG00000291051.1 75504657 75504679 0 - 75501692 75517335 0 - chr16_-_75504657_75504679*ENSG00000291051.1 chr16 chr16 ENSG00000291051.1 ENSG00000291051 75504657
6826 chr5_1628685_1628721*ENSG00000291079.1 1628685 1628721 0 - 1598919 1634014 0 - chr5_-_1628685_1628710,chr5_-_1628688_1628710,... chr5 chr5 ENSG00000291079.1 ENSG00000291079 1628685
4748 chr7_66584030_66584123*ENSG00000291136.1 66584030 66584123 0 - 66526087 66592397 0 - chr7_-_66584030_66584123*ENSG00000291136.1 chr7 chr7 ENSG00000291136.1 ENSG00000291136 66584030
9865 chr7_100329940_100330026*ENSG00000291178.1 100329940 100330026 0 - 100300019 100336307 0 - chr7_-_100329940_100330026,chr7_-_100329978_10... chr7 chr7 ENSG00000291178.1 ENSG00000291178 100329940
10561 chr6_159682470_159682490*ENSG00000291237.1 159682470 159682490 0 - 159669068 159762529 0 - chr6_-_159682470_159682490*ENSG00000291237.1 chr6 chr6 ENSG00000291237.1 SOD2 159682470

2953 rows × 15 columns

[28]:

distaldf=pd.concat([positive_distaldf,negative_distaldf],axis=0)
distaldf

[28]:
index cluster_start cluster_end cluster_score cluster_strand gene_start gene_end gene_score gene_strand original_cluster_id cluster_chr gene_chr gene_id gene_name PAS
9108 chr7_117668613_117668665*ENSG00000001626.18 117668613 117668665 0 + 117287119 117715971 0 + chr7_+_117668613_117668665,chr7_+_117668616_11... chr7 chr7 ENSG00000001626.18 CFTR 117668665
11675 chr7_92401340_92401383*ENSG00000001629.10 92401340 92401383 0 + 92245973 92401383 0 + chr7_+_92401340_92401383,chr7_+_92401346_92401... chr7 chr7 ENSG00000001629.10 ANKIB1 92401383
4407 chr2_201171638_201171754*ENSG00000003402.21 201171638 201171754 0 + 201116153 201176687 0 + chr2_+_201171638_201171736,chr2_+_201171647_20... chr2 chr2 ENSG00000003402.21 CFLAR 201171754
278 chr12_2803890_2803966*ENSG00000004478.8 2803890 2803966 0 + 2794969 2805423 0 + chr12_+_2803890_2803959,chr12_+_2803893_280396... chr12 chr12 ENSG00000004478.8 FKBP4 2803966
6619 chrX_11123040_11123086*ENSG00000004961.15 11123040 11123086 0 + 11111300 11123086 0 + chrX_+_11123040_11123082,chrX_+_11123043_11123... chrX chrX ENSG00000004961.15 HCCS 11123086
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
8272 chr16_75501692_75501767*ENSG00000291051.1 75501692 75501767 0 - 75501692 75517335 0 - chr16_-_75501692_75501714,chr16_-_75501692_755... chr16 chr16 ENSG00000291051.1 ENSG00000291051 75501692
6825 chr5_1628513_1628550*ENSG00000291079.1 1628513 1628550 0 - 1598919 1634014 0 - chr5_-_1628513_1628532,chr5_-_1628515_1628550,... chr5 chr5 ENSG00000291079.1 ENSG00000291079 1628513
4747 chr7_66553532_66553614*ENSG00000291136.1 66553532 66553614 0 - 66526087 66592397 0 - chr7_-_66553532_66553614,chr7_-_66553564_66553... chr7 chr7 ENSG00000291136.1 ENSG00000291136 66553532
9864 chr7_100320908_100320958*ENSG00000291178.1 100320908 100320958 0 - 100300019 100336307 0 - chr7_-_100320908_100320939,chr7_-_100320911_10... chr7 chr7 ENSG00000291178.1 ENSG00000291178 100320908
10558 chr6_159679058_159679163*ENSG00000291237.1 159679058 159679163 0 - 159669068 159762529 0 - chr6_-_159679058_159679149,chr6_-_159679058_15... chr6 chr6 ENSG00000291237.1 SOD2 159679058

2953 rows × 15 columns

Select genes with two or more than two PASs.

[29]:

keepexpadata=expadata[adata.obs.index.tolist(),distaldf['gene_id'].tolist()]
keepexpadata

[29]:

View of AnnData object with n_obs × n_vars = 14537 × 2953
    obs: 'celltype', 'sample_id', 'organ'
    var: 'gene_ids', 'feature_types', 'gene_name'
    uns: 'celltype_colors', 'log1p', 'raw_count'
    obsm: 'X_tsne'

[30]:

keepexpadata.obs

keepexpadata.obs=adata.obs
keepexpadata

[30]:

AnnData object with n_obs × n_vars = 14537 × 2953
    obs: 'celltype', 'sample_id', 'organ'
    var: 'gene_ids', 'feature_types', 'gene_name'
    uns: 'celltype_colors', 'log1p', 'raw_count'
    obsm: 'X_tsne'

Select proximal PAS

[31]:

isoform1adata=adata[:,promialdf.index.tolist()]
isoform1adata

[31]:

View of AnnData object with n_obs × n_vars = 14537 × 2953
    obs: 'celltype', 'sample_id', 'organ'
    var: 'cluster_start', 'cluster_end', 'cluster_score', 'cluster_strand', 'gene_start', 'gene_end', 'gene_score', 'gene_strand', 'original_cluster_id', 'cluster_chr', 'gene_chr', 'gene_id', 'gene_name'
    obsm: 'X_tsne'

Select distal PAS

[32]:

isoform2adata=adata[:,distaldf.index.tolist()]
isoform2adata

[32]:

View of AnnData object with n_obs × n_vars = 14537 × 2953
    obs: 'celltype', 'sample_id', 'organ'
    var: 'cluster_start', 'cluster_end', 'cluster_score', 'cluster_strand', 'gene_start', 'gene_end', 'gene_score', 'gene_strand', 'original_cluster_id', 'cluster_chr', 'gene_chr', 'gene_id', 'gene_name'
    obsm: 'X_tsne'

Add proximal PAS and distal PAS exp to gene exp h5ad layers

[33]:

isoform2adata.var.index

[33]:

Index(['chr7_117668613_117668665*ENSG00000001626.18',
       'chr7_92401340_92401383*ENSG00000001629.10',
       'chr2_201171638_201171754*ENSG00000003402.21',
       'chr12_2803890_2803966*ENSG00000004478.8',
       'chrX_11123040_11123086*ENSG00000004961.15',
       'chr16_20797566_20797581*ENSG00000005187.12',
       'chr19_2354757_2354805*ENSG00000005206.17',
       'chr7_87399740_87399794*ENSG00000005469.12',
       'chr17_50111006_50111060*ENSG00000005882.12',
       'chr17_35726370_35726413*ENSG00000006125.18',
       ...
       'chr17_38733897_38733936*ENSG00000277258.5',
       'chr17_37610316_37610331*ENSG00000278053.5',
       'chr17_36495635_36495663*ENSG00000278259.5',
       'chr12_122870058_122870086*ENSG00000280138.1',
       'chr2_203238213_203238277*ENSG00000289294.2',
       'chr16_75501692_75501767*ENSG00000291051.1',
       'chr5_1628513_1628550*ENSG00000291079.1',
       'chr7_66553532_66553614*ENSG00000291136.1',
       'chr7_100320908_100320958*ENSG00000291178.1',
       'chr6_159679058_159679163*ENSG00000291237.1'],
      dtype='object', length=2953)

[34]:

keepexpadata.layers['isoform1']=isoform1adata.X
keepexpadata.layers['isoform2']=isoform2adata.X

keepexpadata

[34]:

AnnData object with n_obs × n_vars = 14537 × 2953
    obs: 'celltype', 'sample_id', 'organ'
    var: 'gene_ids', 'feature_types', 'gene_name'
    uns: 'celltype_colors', 'log1p', 'raw_count'
    obsm: 'X_tsne'
    layers: 'isoform1', 'isoform2'

Add proximal and distal PAS name to the isoform1_name and isoform2_name

[35]:

keepexpadata.var['isoform1_name']=isoform1adata.var.index.values
keepexpadata.var['isoform2_name']=isoform2adata.var.index.values
keepexpadata

[35]:

AnnData object with n_obs × n_vars = 14537 × 2953
    obs: 'celltype', 'sample_id', 'organ'
    var: 'gene_ids', 'feature_types', 'gene_name', 'isoform1_name', 'isoform2_name'
    uns: 'celltype_colors', 'log1p', 'raw_count'
    obsm: 'X_tsne'
    layers: 'isoform1', 'isoform2'

BRIE require that layers[‘ambiguous’] must included.

[36]:

keepexpadata.layers['ambiguous']=np.zeros((14537, 2953))
keepexpadata

[36]:

AnnData object with n_obs × n_vars = 14537 × 2953
    obs: 'celltype', 'sample_id', 'organ'
    var: 'gene_ids', 'feature_types', 'gene_name', 'isoform1_name', 'isoform2_name'
    uns: 'celltype_colors', 'log1p', 'raw_count'
    obsm: 'X_tsne'
    layers: 'isoform1', 'isoform2', 'ambiguous'

[37]:

keepexpadata.X

[37]:

<14537x2953 sparse matrix of type '<class 'numpy.float32'>'
        with 15615174 stored elements in Compressed Sparse Row format>

To run BRIE smoothly, we should change the data type of layers

[38]:

keepexpadata.X=keepexpadata.X.astype('float32')
keepexpadata.layers['isoform1']=keepexpadata.layers['isoform1'].astype('float32')
keepexpadata.layers['isoform2']=keepexpadata.layers['isoform2'].astype('float32')
keepexpadata.layers['ambiguous']=keepexpadata.layers['ambiguous'].astype('float32')
keepexpadata

[38]:

AnnData object with n_obs × n_vars = 14537 × 2953
    obs: 'celltype', 'sample_id', 'organ'
    var: 'gene_ids', 'feature_types', 'gene_name', 'isoform1_name', 'isoform2_name'
    uns: 'celltype_colors', 'log1p', 'raw_count'
    obsm: 'X_tsne'
    layers: 'isoform1', 'isoform2', 'ambiguous'

All of the isoform1, isofrom2 and gene exp should be raw count

[39]:

keepexpadata.X.toarray()

[39]:

array([[0., 0., 0., ..., 0., 0., 0.],
       [0., 2., 1., ..., 1., 0., 3.],
       [0., 0., 0., ..., 0., 0., 2.],
       ...,
       [1., 0., 0., ..., 0., 0., 1.],
       [1., 0., 0., ..., 1., 0., 2.],
       [3., 0., 0., ..., 0., 0., 0.]], dtype=float32)

[40]:

keepexpadata.write('/mnt/ruiyanhou/nfs_share2/three_primer/human_intestinal/run_BRIE/express_to_brie.h5ad')

Prepare design matrix

Design matrix should be designed according to your ultimate goal. For example, here if you want to detect differential PAS signal between one cell type with remaining other cell type. You could build design matrix according to following code.

[41]:

import pandas as pd
import scanpy as sc
import numpy as np

[42]:

keepexpadata=sc.read('/mnt/ruiyanhou/nfs_share2/three_primer/human_intestinal/run_BRIE/express_to_brie.h5ad')
keepexpadata

[42]:

AnnData object with n_obs × n_vars = 14537 × 2953
    obs: 'celltype', 'sample_id', 'organ'
    var: 'gene_ids', 'feature_types', 'gene_name', 'isoform1_name', 'isoform2_name'
    uns: 'celltype_colors', 'log1p', 'raw_count'
    obsm: 'X_tsne'
    layers: 'ambiguous', 'isoform1', 'isoform2'

[43]:

keepexpadata.X

[43]:

<14537x2953 sparse matrix of type '<class 'numpy.float32'>'
        with 15615174 stored elements in Compressed Sparse Row format>

[44]:

cellclusterdf=pd.DataFrame(keepexpadata.obs['celltype'])
cellclusterdf

[44]:
celltype
ACTTACTCAGATGGCA-SRR8513794 Enterocyte
CTCTACGGTTCCATGA-SRR8513794 Enterocyte
AAGGCAGTCTACTTAC-SRR8513794 Enterocyte
GGGACCTAGAAACGCC-SRR8513794 Enterocyte
AGCGTATTCAGGCGAA-SRR8513794 Enterocyte
... ...
TCAGGATGTACCGCTG-SRR8513799 Paneth-like
CGCTTCAGTCAAAGCG-SRR8513799 Progenitor
AGAGCTTTCAGAGGTG-SRR8513799 Progenitor
TCCACACAGCGATTCT-SRR8513799 Progenitor
CATCCACAGGTCATCT-SRR8513799 Progenitor

14537 rows × 1 columns

[45]:

cdrcelltypedf=pd.get_dummies(cellclusterdf.celltype, prefix='celltype',dtype='int')
cdrcelltypedf

[45]:
celltype_Enteriendocrine celltype_Enterocyte celltype_Goblet celltype_Paneth-like celltype_Progenitor celltype_Stem Cell celltype_TA
ACTTACTCAGATGGCA-SRR8513794 0 1 0 0 0 0 0
CTCTACGGTTCCATGA-SRR8513794 0 1 0 0 0 0 0
AAGGCAGTCTACTTAC-SRR8513794 0 1 0 0 0 0 0
GGGACCTAGAAACGCC-SRR8513794 0 1 0 0 0 0 0
AGCGTATTCAGGCGAA-SRR8513794 0 1 0 0 0 0 0
... ... ... ... ... ... ... ...
TCAGGATGTACCGCTG-SRR8513799 0 0 0 1 0 0 0
CGCTTCAGTCAAAGCG-SRR8513799 0 0 0 0 1 0 0
AGAGCTTTCAGAGGTG-SRR8513799 0 0 0 0 1 0 0
TCCACACAGCGATTCT-SRR8513799 0 0 0 0 1 0 0
CATCCACAGGTCATCT-SRR8513799 0 0 0 0 1 0 0

14537 rows × 7 columns

cdr is the cell detection rate. That is the proportion of gene in the all genes for this cell.

[46]:

cdr=np.array((keepexpadata.X > 0).mean(1))[:,0]
cdr

[46]:

array([0.18726719, 0.3616661 , 0.28581104, ..., 0.20690823, 0.51269895,
       0.26176769])

[47]:

cdrcelltypedf['detect_rate']=cdr
cdrcelltypedf

[47]:
celltype_Enteriendocrine celltype_Enterocyte celltype_Goblet celltype_Paneth-like celltype_Progenitor celltype_Stem Cell celltype_TA detect_rate
ACTTACTCAGATGGCA-SRR8513794 0 1 0 0 0 0 0 0.187267
CTCTACGGTTCCATGA-SRR8513794 0 1 0 0 0 0 0 0.361666
AAGGCAGTCTACTTAC-SRR8513794 0 1 0 0 0 0 0 0.285811
GGGACCTAGAAACGCC-SRR8513794 0 1 0 0 0 0 0 0.309177
AGCGTATTCAGGCGAA-SRR8513794 0 1 0 0 0 0 0 0.185235
... ... ... ... ... ... ... ... ...
TCAGGATGTACCGCTG-SRR8513799 0 0 0 1 0 0 0 0.190992
CGCTTCAGTCAAAGCG-SRR8513799 0 0 0 0 1 0 0 0.304775
AGAGCTTTCAGAGGTG-SRR8513799 0 0 0 0 1 0 0 0.206908
TCCACACAGCGATTCT-SRR8513799 0 0 0 0 1 0 0 0.512699
CATCCACAGGTCATCT-SRR8513799 0 0 0 0 1 0 0 0.261768

14537 rows × 8 columns

[48]:

columnsls=cdrcelltypedf.columns.tolist()
columnsls

[48]:

['celltype_Enteriendocrine',
 'celltype_Enterocyte',
 'celltype_Goblet',
 'celltype_Paneth-like',
 'celltype_Progenitor',
 'celltype_Stem Cell',
 'celltype_TA',
 'detect_rate']

[49]:

columnsls.remove('detect_rate')

Here, we build design matrix for every cell type. We extract this cell type and the cdr to combine to design matrix.

[50]:

columnsls

for celltype in columnsls:
    cdrdf=cdrcelltypedf[[celltype,'detect_rate']]
    cdrdf.reset_index(inplace=True)
    celltype=celltype.replace(' ','_')
    outputfile='/mnt/ruiyanhou/nfs_share2/three_primer/human_intestinal/run_BRIE/'+celltype+'_cdr.tsv'
    cdrdf.to_csv(outputfile,sep='\t',index=None)

Run BRIE2

Here, we compare each cell type with other cell types, respectively.

[ ]:

#!/bin/bash

arr=(Enteriendocrine Enterocyte Goblet Paneth-like Progenitor Stem_Cell TA)
for i in ${arr[@]}
do
echao $i
brie-quant -i /mnt/ruiyanhou/nfs_share2/three_primer/human_intestinal/run_BRIE/express_to_brie.h5ad \
           -c /mnt/ruiyanhou/nfs_share2/three_primer/human_intestinal/run_BRIE/celltype_${i}_cdr.tsv \
           -o /mnt/ruiyanhou/nfs_share2/three_primer/human_intestinal/run_BRIE/Brie_out/brie_${i}.h5ad \
           --batchSize 1000000 --minCell 10  --interceptMode gene --testBase full --LRTindex 0
done

[ ]:

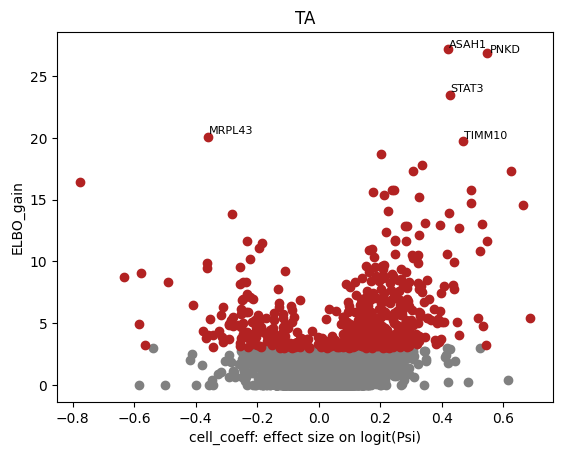

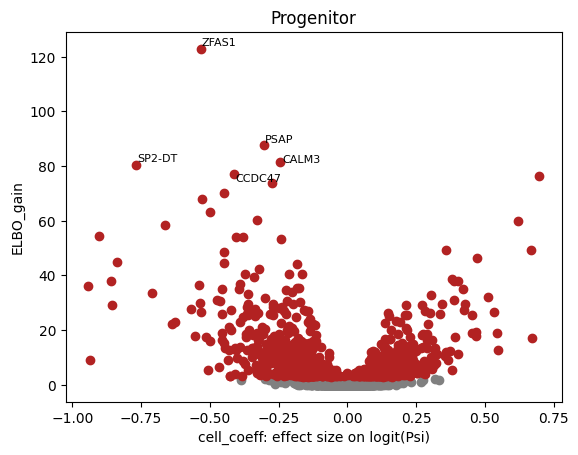

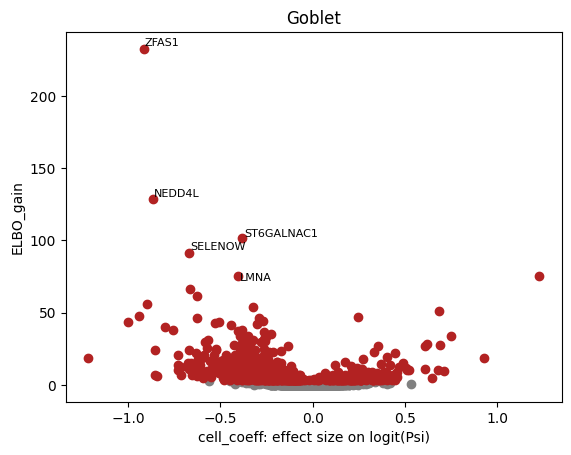

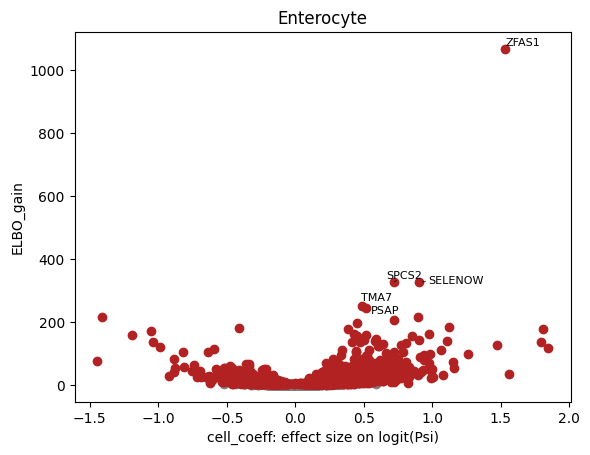

Get cell type-specific gene with alternative PAS

[51]:

import pandas as pd
import scanpy as sc

[52]:

df=pd.read_csv('/mnt/ruiyanhou/nfs_share2/three_primer/human_intestinal/run_BRIE/Brie_out/brie_Enterocyte.brie_ident.tsv',delimiter='\t')
df

[52]:
GeneID n_counts n_counts_uniq cdr intercept sigma celltype_Enterocyte_ceoff celltype_Enterocyte_ELBO_gain celltype_Enterocyte_pval celltype_Enterocyte_FDR
0 ENSG00000001626.18 23021 23021 0.3287 -3.20600 0.6735 0.56260 12.85000 4.000000e-07 2.123000e-06
1 ENSG00000001629.10 7639 7639 0.1772 0.02236 0.4991 -0.16010 2.66200 2.104000e-02 3.630000e-02
2 ENSG00000003402.21 9514 9514 0.3815 0.84670 0.6470 0.16800 4.50100 2.695000e-03 5.812000e-03
3 ENSG00000004478.8 39699 39699 0.4548 -1.76000 0.2904 0.02193 -0.16410 1.000000e+00 1.000000e+00
4 ENSG00000004961.15 21676 21676 0.2712 2.07800 0.4786 -0.12430 0.36820 3.908000e-01 4.731000e-01
... ... ... ... ... ... ... ... ... ... ...
2948 ENSG00000291051.1 4368 4368 0.1045 -2.05100 0.5972 0.70610 18.07000 1.831000e-09 8.393000e-09
2949 ENSG00000291079.1 6542 6542 0.1088 0.28450 0.4135 -0.12300 2.15900 3.770000e-02 6.689000e-02
2950 ENSG00000291136.1 4595 4595 0.1897 -0.16540 0.6673 0.24340 3.95800 4.900000e-03 1.172000e-02
2951 ENSG00000291178.1 5579 5579 0.1383 -0.45470 0.5989 0.12200 -1.32400 1.000000e+00 1.000000e+00
2952 ENSG00000291237.1 28828 28828 0.5867 -1.35900 0.5105 -0.01210 -0.00293 1.000000e+00 1.000000e+00

2953 rows × 10 columns

[54]:

signdf=df[df['celltype_Enterocyte_FDR']<0.01]
signdf

[54]:
GeneID n_counts n_counts_uniq cdr intercept sigma celltype_Enterocyte_ceoff celltype_Enterocyte_ELBO_gain celltype_Enterocyte_pval celltype_Enterocyte_FDR
0 ENSG00000001626.18 23021 23021 0.3287 -3.2060 0.6735 0.5626 12.850 4.000000e-07 2.123000e-06
2 ENSG00000003402.21 9514 9514 0.3815 0.8467 0.6470 0.1680 4.501 2.695000e-03 5.812000e-03
6 ENSG00000005206.17 17599 17599 0.3137 1.0840 0.4957 0.3520 20.660 1.288000e-10 1.111000e-09
7 ENSG00000005469.12 7336 7336 0.1894 -1.5220 0.7429 -0.2405 4.714 2.137000e-03 4.916000e-03
8 ENSG00000005882.12 18954 18954 0.3549 -0.7998 0.5559 -0.2388 10.800 3.359000e-06 1.545000e-05
... ... ... ... ... ... ... ... ... ... ...
2934 ENSG00000271447.6 18002 18002 0.3237 0.4577 0.4665 -0.4772 59.930 6.771000e-28 7.448000e-27
2937 ENSG00000272763.1 51545 51545 0.6234 2.8490 0.4234 0.2453 12.580 5.281000e-07 2.075000e-06
2941 ENSG00000275718.2 85991 85991 0.7367 2.4530 0.4224 -0.3414 47.980 1.174000e-22 1.076000e-21
2947 ENSG00000289294.2 6284 6284 0.1059 0.7675 0.4908 0.3866 11.350 1.902000e-06 6.539000e-06
2948 ENSG00000291051.1 4368 4368 0.1045 -2.0510 0.5972 0.7061 18.070 1.831000e-09 8.393000e-09

1266 rows × 10 columns

Here, we just want to get the relationship between gene id and gene name.

[56]:

refdf=pd.read_csv('/mnt/ruiyanhou/nfs_share2/three_primer/human_intestinal/run_scTail/SRR8513794-1/ref_file/ref_gene.tsv',delimiter='\t')
refdf.rename(columns={'gene_id':'GeneID'},inplace=True)
refdf

[56]:
Chromosome Feature Start End Strand GeneID gene_name
0 chr1 gene 11868 14409 + ENSG00000290825.1 DDX11L2
1 chr1 gene 12009 13670 + ENSG00000223972.6 DDX11L1
2 chr1 gene 29553 31109 + ENSG00000243485.5 MIR1302-2HG
3 chr1 gene 30365 30503 + ENSG00000284332.1 MIR1302-2
4 chr1 gene 52472 53312 + ENSG00000268020.3 OR4G4P
... ... ... ... ... ... ... ...
62576 chrY gene 26626519 26627159 - ENSG00000231514.1 CCNQP2
62577 chrY gene 57015104 57016096 - ENSG00000292364.1 AMD1P2
62578 chrY gene 57165511 57165845 - ENSG00000292367.1 ELOCP24
62579 chrY gene 57171889 57172769 - ENSG00000292368.1 TRPC6P1
62580 chrY gene 57201142 57203357 - ENSG00000292370.1 WASIR1

62581 rows × 7 columns

[57]:

signmergedf=signdf.merge(refdf,on='GeneID')
signmergedf

[57]:
GeneID n_counts n_counts_uniq cdr intercept sigma celltype_Enterocyte_ceoff celltype_Enterocyte_ELBO_gain celltype_Enterocyte_pval celltype_Enterocyte_FDR Chromosome Feature Start End Strand gene_name
0 ENSG00000001626.18 23021 23021 0.3287 -3.2060 0.6735 0.5626 12.850 4.000000e-07 2.123000e-06 chr7 gene 117287119 117715971 + CFTR
1 ENSG00000003402.21 9514 9514 0.3815 0.8467 0.6470 0.1680 4.501 2.695000e-03 5.812000e-03 chr2 gene 201116153 201176687 + CFLAR
2 ENSG00000005206.17 17599 17599 0.3137 1.0840 0.4957 0.3520 20.660 1.288000e-10 1.111000e-09 chr19 gene 2328614 2355095 + SPPL2B
3 ENSG00000005469.12 7336 7336 0.1894 -1.5220 0.7429 -0.2405 4.714 2.137000e-03 4.916000e-03 chr7 gene 87345663 87399794 + CROT
4 ENSG00000005882.12 18954 18954 0.3549 -0.7998 0.5559 -0.2388 10.800 3.359000e-06 1.545000e-05 chr17 gene 50094736 50112152 + PDK2
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
1261 ENSG00000271447.6 18002 18002 0.3237 0.4577 0.4665 -0.4772 59.930 6.771000e-28 7.448000e-27 chr17 gene 35756248 35795707 - MMP28
1262 ENSG00000272763.1 51545 51545 0.6234 2.8490 0.4234 0.2453 12.580 5.281000e-07 2.075000e-06 chr17 gene 48635922 48647023 - LINC03057
1263 ENSG00000275718.2 85991 85991 0.7367 2.4530 0.4224 -0.3414 47.980 1.174000e-22 1.076000e-21 chr17 gene 35996439 36001553 - CCL15
1264 ENSG00000289294.2 6284 6284 0.1059 0.7675 0.4908 0.3866 11.350 1.902000e-06 6.539000e-06 chr2 gene 203237260 203239295 - ENSG00000289294
1265 ENSG00000291051.1 4368 4368 0.1045 -2.0510 0.5972 0.7061 18.070 1.831000e-09 8.393000e-09 chr16 gene 75501692 75517335 - ENSG00000291051

1266 rows × 16 columns

[58]:

signmergedf.sort_values('celltype_Enterocyte_FDR',inplace=True)
signmergedf

[58]:
GeneID n_counts n_counts_uniq cdr intercept sigma celltype_Enterocyte_ceoff celltype_Enterocyte_ELBO_gain celltype_Enterocyte_pval celltype_Enterocyte_FDR Chromosome Feature Start End Strand gene_name
534 ENSG00000177410.13 74463 74463 0.8652 -1.5100 0.6945 1.53100 1068.000 0.000000e+00 0.000000e+00 chr20 gene 49278177 49299600 + ZFAS1
538 ENSG00000178980.16 69851 69851 0.8034 -2.1520 0.5616 0.90540 326.900 3.203000e-144 1.105000e-142 chr19 gene 47778676 47784686 + SELENOW
197 ENSG00000118363.13 63373 63373 0.5862 -0.4844 0.4094 0.72190 327.000 2.876000e-144 1.985000e-142 chr11 gene 74949260 74979033 + SPCS2
627 ENSG00000232112.3 78936 78936 0.9706 0.3797 0.3750 0.48340 251.600 1.851000e-111 1.277000e-109 chr3 gene 48440256 48444208 + TMA7
1209 ENSG00000197746.15 73204 73204 0.8020 -0.7727 0.3948 0.51830 245.600 8.110000e-109 5.596000e-107 chr10 gene 71816297 71851251 - PSAP
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
157 ENSG00000109854.14 59105 59105 0.6255 -2.2810 0.4332 -0.11470 4.143 3.997000e-03 9.510000e-03 chr11 gene 20363684 20383782 + HTATIP2
691 ENSG00000070770.10 4403 4403 0.1399 0.2970 0.5603 -0.24230 4.174 3.862000e-03 9.517000e-03 chr16 gene 58157906 58198106 - CSNK2A2
985 ENSG00000146247.15 14341 14341 0.3382 1.0870 0.4791 0.14550 4.434 2.903000e-03 9.540000e-03 chr6 gene 78934418 79078287 - PHIP
411 ENSG00000158467.17 10622 10622 0.2798 -1.4670 0.7069 0.07382 3.846 5.548000e-03 9.816000e-03 chr7 gene 129225029 129430211 + AHCYL2
8 ENSG00000006652.15 44880 44880 0.5463 1.1970 0.3213 0.07032 3.957 4.905000e-03 9.955000e-03 chr7 gene 112422886 112481017 + IFRD1

1266 rows × 16 columns

[60]:

expadata=sc.read('/mnt/ruiyanhou/nfs_share2/three_primer/human_intestinal/human_intestinal_gene_exp_scale.h5ad')
expadata

[60]:

AnnData object with n_obs × n_vars = 14537 × 62700
    obs: 'celltype', 'sample_id', 'organ'
    var: 'gene_ids', 'feature_types'
    uns: 'celltype_colors', 'log1p', 'raw_count'
    obsm: 'X_tsne'

[61]:

apaadata=sc.read('/mnt/ruiyanhou/nfs_share2/three_primer/human_intestinal/human_intestinal_APA_exp_scale.h5ad')
apaadata

[61]:

AnnData object with n_obs × n_vars = 14537 × 14025
    obs: 'celltype', 'sample_id', 'organ'
    var: 'cluster_start', 'cluster_end', 'cluster_score', 'cluster_strand', 'gene_start', 'gene_end', 'gene_score', 'gene_strand', 'original_cluster_id', 'cluster_chr', 'gene_chr', 'gene_id', 'gene_name'
    uns: 'log1p', 'neighbors', 'paga'
    obsm: 'X_pca', 'X_tsne'
    layers: 'raw_count'
    obsp: 'connectivities', 'distances'

[62]:

def plot_tsne_gene(genename):
    sc.pl.tsne(expadata, color=['celltype',genename],cmap='YlOrRd')
    #plt.show()
    selectadata=apaadata[:,apaadata.var['gene_name']==genename]
    sc.pl.tsne(selectadata,color=selectadata.var.index.tolist(),cmap='YlOrRd')
    #plt.show()

[64]:


plot_tsne_gene('ZFAS1')

/mnt/ruiyanhou/nfs_share2/conda_env/envs/basenji/lib/python3.8/site-packages/scanpy/plotting/_tools/scatterplots.py:391: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
  cax = scatter(

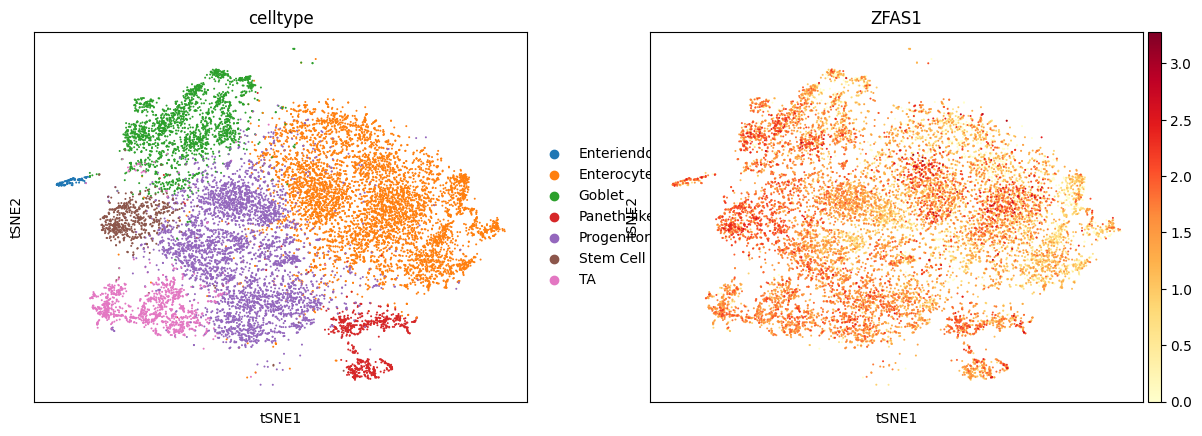

_images/runBRIE_80_1.png

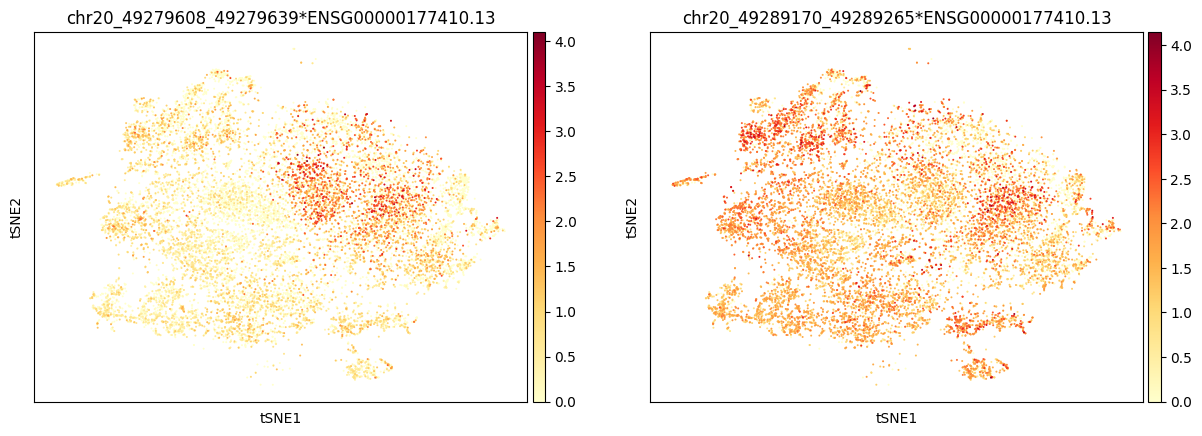

_images/runBRIE_80_2.png

Valcano plot shows significant differential gene with APA

[1]:

import pandas as pd
import numpy as np
import scanpy as sc
import matplotlib.pyplot as plt
import brie

[2]:

def plot_valcano(celltype):
    inputfilePath='/mnt/ruiyanhou/nfs_share2/three_primer/human_intestinal/run_BRIE/Brie_out/brie_'+celltype+'.h5ad'
    adata=sc.read(inputfilePath)
    adata.var.index=adata.var['gene_name']
    brie.pl.volcano(adata, y='ELBO_gain', log_y=False, n_anno=5, score_red=3, adjust=True)
    plt.xlabel('cell_coeff: effect size on logit(Psi)')
    plt.title(celltype)
    plt.show()

[3]:

celltypels=['Enterocyte','Goblet','Progenitor','TA']

[4]:

for celltype in celltypels:
    plot_valcano(celltype)

/mnt/ruiyanhou/nfs_share2/conda_env/envs/Py39/lib/python3.9/site-packages/anndata-0.10.3-py3.9.egg/anndata/__init__.py:51: FutureWarning: `anndata.read` is deprecated, use `anndata.read_h5ad` instead. `ad.read` will be removed in mid 2024.
  warnings.warn(
_images/runBRIE_85_1.png
/mnt/ruiyanhou/nfs_share2/conda_env/envs/Py39/lib/python3.9/site-packages/anndata-0.10.3-py3.9.egg/anndata/__init__.py:51: FutureWarning: `anndata.read` is deprecated, use `anndata.read_h5ad` instead. `ad.read` will be removed in mid 2024.
  warnings.warn(
_images/runBRIE_85_3.png
/mnt/ruiyanhou/nfs_share2/conda_env/envs/Py39/lib/python3.9/site-packages/anndata-0.10.3-py3.9.egg/anndata/__init__.py:51: FutureWarning: `anndata.read` is deprecated, use `anndata.read_h5ad` instead. `ad.read` will be removed in mid 2024.
  warnings.warn(
_images/runBRIE_85_5.png
/mnt/ruiyanhou/nfs_share2/conda_env/envs/Py39/lib/python3.9/site-packages/anndata-0.10.3-py3.9.egg/anndata/__init__.py:51: FutureWarning: `anndata.read` is deprecated, use `anndata.read_h5ad` instead. `ad.read` will be removed in mid 2024.
  warnings.warn(
_images/runBRIE_85_7.png
[ ]:
